NA4RR on the air thanks to 2 great hams!

Thanks to both Rob KC2RDW and Niko AA2NI, I am really back on the air now. This weekend they both spent a good part of their Saturday helping me get the NA4RR hex beam mounted up in the air on a Radio Shack rotor I had picked up at a local hamfest a year or so ago. Together they figured out the best plan to get the pole made up of two 1.25″ steel pipes securely mounted on the back of my garage and then get the rotor and antenna on top of it all. We hit a bit of a snag with the mounting brackets I had not well suited for the 1.25″ pipe (though it states it can accept up to a 1.25″ pipe) but they improvised and it worked out fine.

I did measure the height but based on the poles and the rotor I’d guess the bottom of the hex beam is about 18 feet (5.5 meters) or so off the ground and it is working fine. In some tests on Saturday and Sunday after it was up I was able to easily work Namibia, Saudi Arabia, United Arab Emirates, a dozen Japan stations in the All Asia contest and even snagged a new DXCC working ZD7DC on St Helena Island in the South Atlantic.

After we got the NA4RR hex beam up, Niko shot a line perfectly placed into one of my trees and we pulled up a line attached to a spare G5RV I had that will allow me to work 40m and 80m in addition to the bands covered by the hex beam.  This replaces the G5RV that was taken down, along with my triband fan dipole when a huge tree fell across my property taken down the wire antennas (and my gutters along with other things) during Superstorm Sandy the end of last October.

Thanks so much Rob & Niko – you made a very happy ham again!

Below are some pictures taken while getting things set up.  Click any picture to see a larger version.

20130907_104008
NA4RR beam getting ready to mount into the rotor. I spray painted the beam (fiberglass polls, center post and center hub) with Rustoleum Painter’s Touch flat black. Makes it less noticeable in my environment as black vs the brighter grey/silver.



20130907_104029
Mounting brackets on the side of the garage



20130907_104018
Niko (AA2NI) and Rob (KC2RDW) getting ready to mount the beam onto the end of the rotor



2013090795121921
Rob (KC2RDW) on the garage roof



20130907_150913
Picture of the setup from our deck



20130907_150931
Close up of the beam with rotor



73,
K2DSL

NA4RR Hex Beam Installed and On the Air!



ordered the NA4RR Hex Beam last weekend and it arrived a few days later in 2 boxes via FedEx. Here’s a picture of the boxes as they arrived. The taller box contained the main center post and the 6 fiberglass arms, each arm made up of 3 segments that fit into each other.  The smaller square box on the chair contained all the other components – instructions, main hub, bolts/nuts, pre-cut wires for each band and the bungee cords.

na4rr_boxes

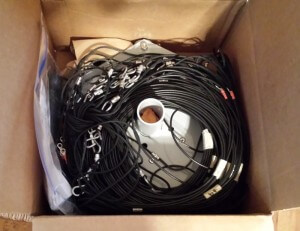

Here’s a picture of the box with just the instructions removed. On the left in the ziploc bag is the ferrite balun I ordered along with the antenna. The coated wires for each band were wrapped neatly and individually labeled. The bolts to secure the center hub to the main post and the pole, along with lock washers and bolts were packaged in a small envelope you can see looking into the center of the main hub. Just looking at the components in the box (click the picture for a larger view), you can tell everything was well organized and meticulously packed.

na4rr_main_parts



I’m lucky to have a friend like Rob (KC2RDW) who came over this morning with some tools, spare parts and an antenna analyzer. Rob has previously built his own hex beam so he’s very experienced in it’s construction and has helped others put hex beams together.  Rob mad a great suggestion that we use the patio table with the umbrella removed as a way to get things setup as it allows you to move around and under the antenna as needed. We started with the hub placed on a spare metal pole. The hub has each of the tubes that accept the fiberglass poles numbered so it is easy to align the components and keep everything straight. Using the supplied bolt we attached the main center pole to the hub with the coax connector at the back. Once that’s in place we unwrapped the 3 parts of each fiberglass pole that were shipped grouped together. Each is marked so they go into the center hub and into each other properly. It took 15 minutes to attach the center post and slide the 3 parts for each pole together and in their respective slots. Here you can see a close-up of the marked center hub with one of the fiberglass poles:

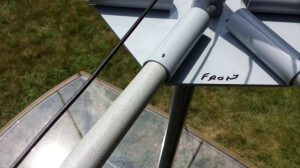

hub_marked



The next step is to take 6 of the bungee cords and place the S hook on one end into the end of each fiberglass pole and the other end onto the eye bolt at the top of the center post. This step gives the hex beam it’s familiar inverted umbrella shape. There are 2 other bungee cords that attach between the fiberglass poles on the front of the beam to keep things in place. This takes 5 minutes and it is helpful to have 2 people for this with one bending the end of the pole up as the bungee cord is attached to the center post.

The next step is to take each of the wires and secure it to the center post and route them through the rings on each pole until you come all the way back to secure the other end to the center post.  You start with 6m which is the shortest wire and closest to the center pole and go out from there. As previously mentioned, the wire for each band is neatly wrapped and labeled so there’s no guesswork. Here’s a picture of one of the center hubs with 2 bands attached and a picture of the loops on each of the poles that the wire passes through:

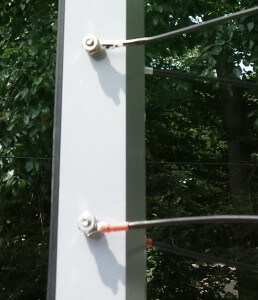

center_post_connection

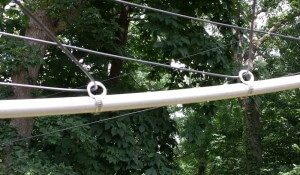

pole_loops

Once looped through all 6 poles, the connector at the other end is attached to the opposite side of the center post completing the wiring of each band.  This process which entails unwrapping the wires for each band, looping them through and bolting each end takes about 30 minutes. It is helpful to have two people doing it to pass the wire for each band through the loops.

With all 6 bands wired up and connected, the last step in the setup is to attach the coax. I’m reusing the coax from my tri-band fan dipole that was torn apart last October when a 70 ft tree fell across my yard during Superstorm Sandy. We ran the coax through the hole in the hub and placed the rubber grommet around it. Rob placed a loop at the top of the coax and attached to the connector on the back of the center post. A little electrical tape to hold the coax in place and the antenna is complete! It’s now about 90 mins after Rob arrived which included looking at where I wanted to put the antenna, moving the patio table into place, and getting the pole in place before we even started. We don’t have a rotor on it yet so Rob just points the NA4RR hex beam ENE.

The antenna is only 6 feet off the ground but we head inside to check things out. We hook up the coax to TS-2000, power everything up and check out how things look. Well, it looks FANTASTIC! From 6m to 20m, as we tune the bands the SWR is between 1:1 and 1:1.5 and we’re hearing signals. What I immediately notice is that on an empty frequency my S meter which was never lower than S3 and more like S5 is showing nothing. If I wasn’t hearing others and seeing the S meter move when someone was on frequency I would have thought that nothing was plugged in.  The first contact we make is with a PI4 station in the Netherlands and everything seems to be working well. Rob checks each band with his nice RigExpert antenna analyzer and things look good.  I’m now back on the air after about 9 month hiatus.

Rob and I talked about where I was going to more permanently mount it and what I need to get. Once I have all that in place we can get the rotor on the pole and the antenna on the rotor. I’d expect the bottom of the hex beam hub to be about 18-20 feet off the ground once everything is in place.  Here’s a picture of the completed antenna in the middle of the back yard supported by the patio table at 6ft off the ground. Click for a larger view.

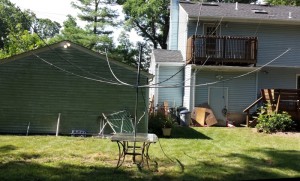

completed_na4rr_hexbeam

I’ve made 7 contacts to EU stations and a 6m contact to a strong Alabama station and everything appears to be working well. The NA4RR hex beam is a terrific value for a well constructed plug-and-play hex beam. With everything pre-cut and well labeled, it’s ready to go with detailed instructions that make assembly foolproof.

I’ll post some more pictures once the antenna is up higher with the rotor attached. Thanks again to Rob KC2RDW for all his advice and help both pre and post purchase! It’s great to have the headset on again and be back on the air!

73,
K2DSL
